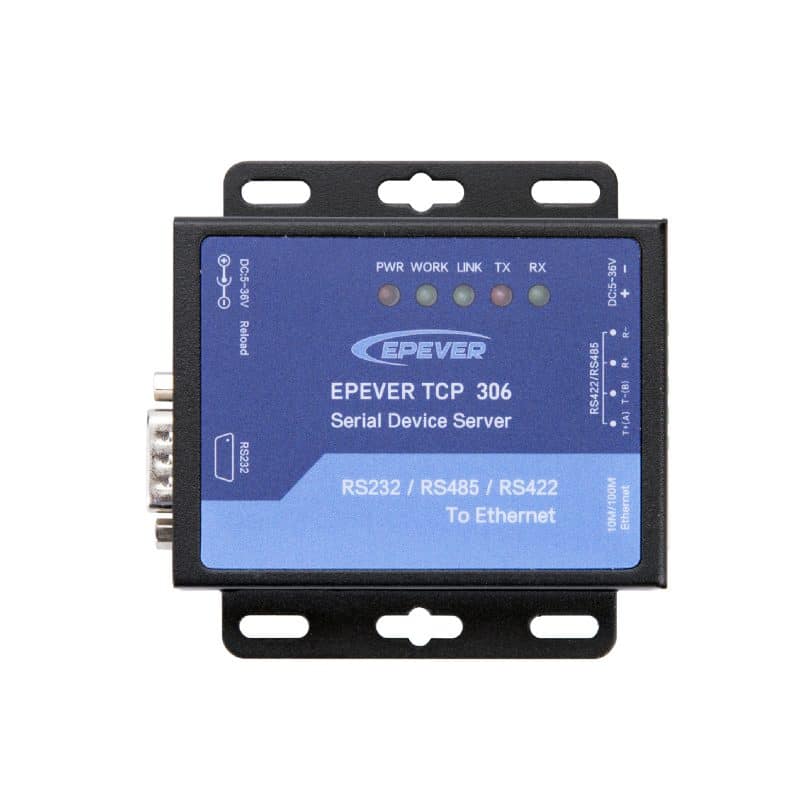

EPEVER TCP 306

EPEVER TCP 306

Category Tags ,

EPEVER TCP 306 is a serial device server connecting with EPEVER solar controller, inverter, and inverter/charger via an RS485 port.



Additional information

Specification Value
Model MT11
Apply to model DRN series
Self-consumption (Power on) 13mA/5Vdc
Self-consumption (Power off) 4mA
Communication way RS485
Communication port 3.81-4P
RS485 cable CC-RS485-RS485-3.81-4P-150(1.5m)
Environment temperature -20℃～+70℃
Storage temperature range -20℃～+70℃
Enclosure IP20
Dimension 98.4×98.4mm
Base cover dimension 114×114mm
Weight 0.11kg

Download

EPEVER-DATASHEET-MT11

EPEVER-Datasheet-MT11

DOWNLOAD FILE

MT11-MANUAL-EN-V2.2

EPEVER-Manual-MT11

DOWNLOAD FILE

Product Highlights

  • Easy to install and operate
  • Locally reading of real-time parameters

  • Real-time display of fault alarms
  • Powered by the controller directly

3D view

3D View

Description

The EPEVER TCP 306 network serial port adapter connects with devices via the RS485 interface and TCP network communication. It transfers data to the EPEVER cloud platform, enabling remote monitoring, parameter setting, and data analysis of our solar controllers, inverters, and hybrid inverter chargers. It also allows for simple and convenient operation through the PC configuration tool to modify TCP module IP addresses, TCP server, TCP client modes, and more.
