HPS-AL Series(1000~2500W) Solar Power System

Additional information

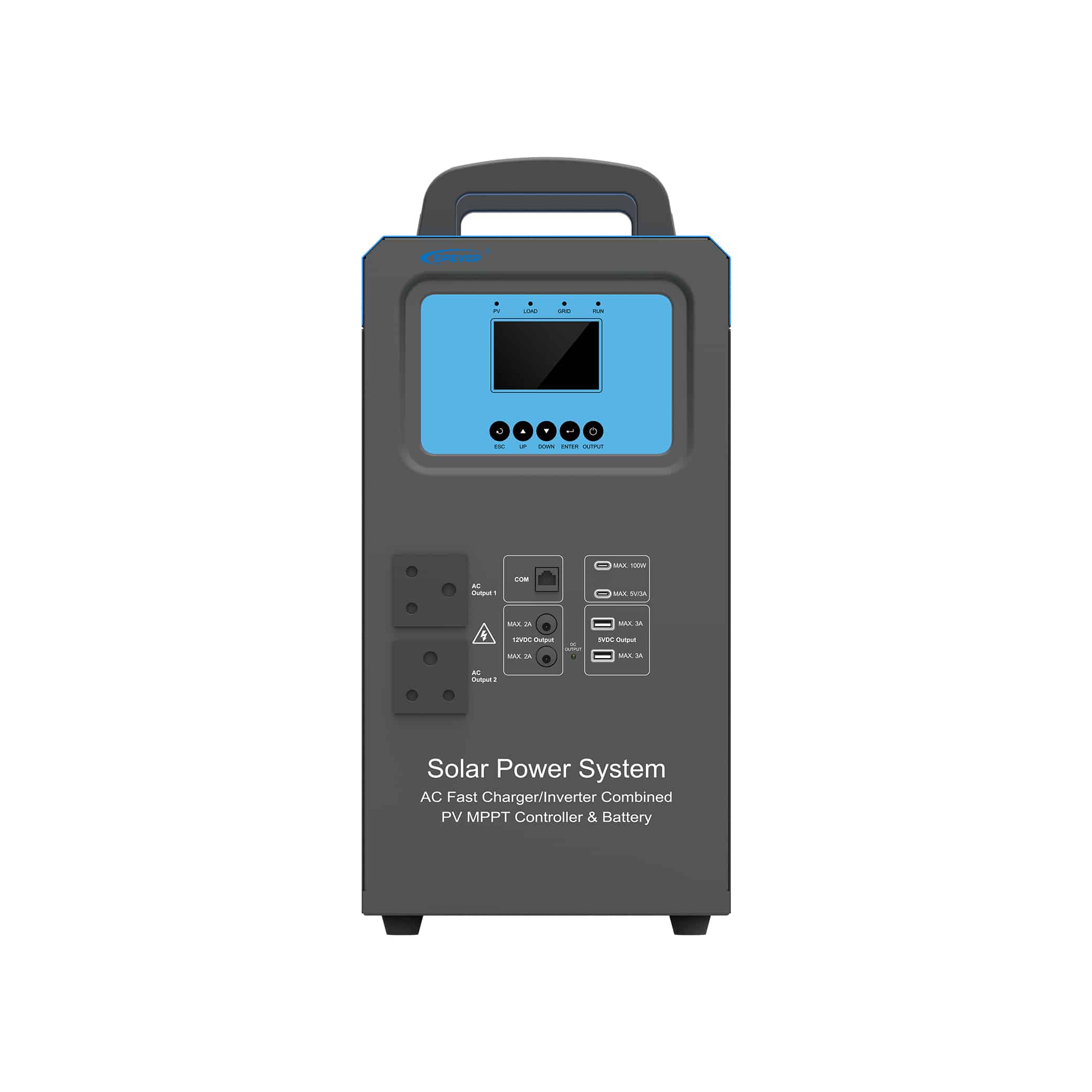

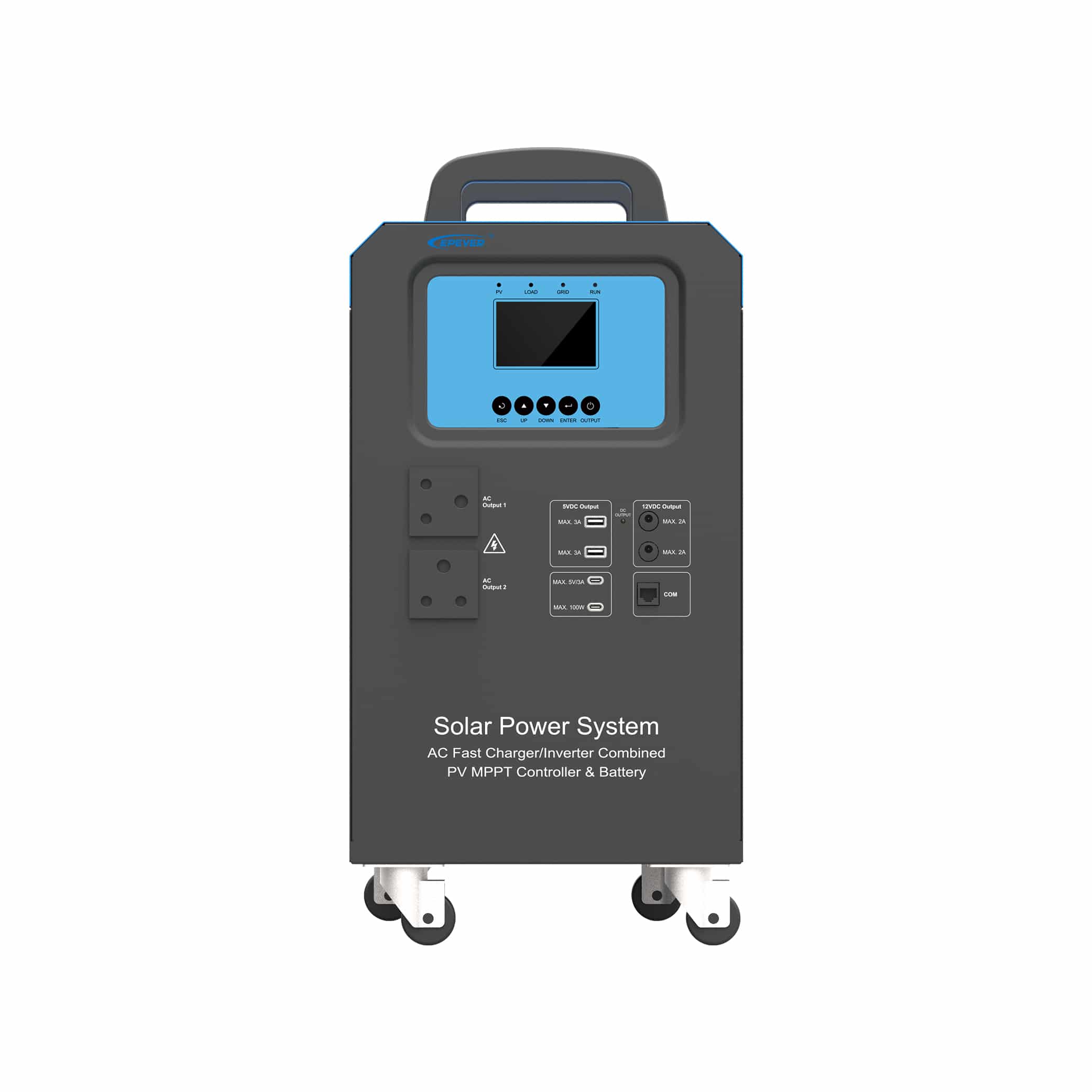

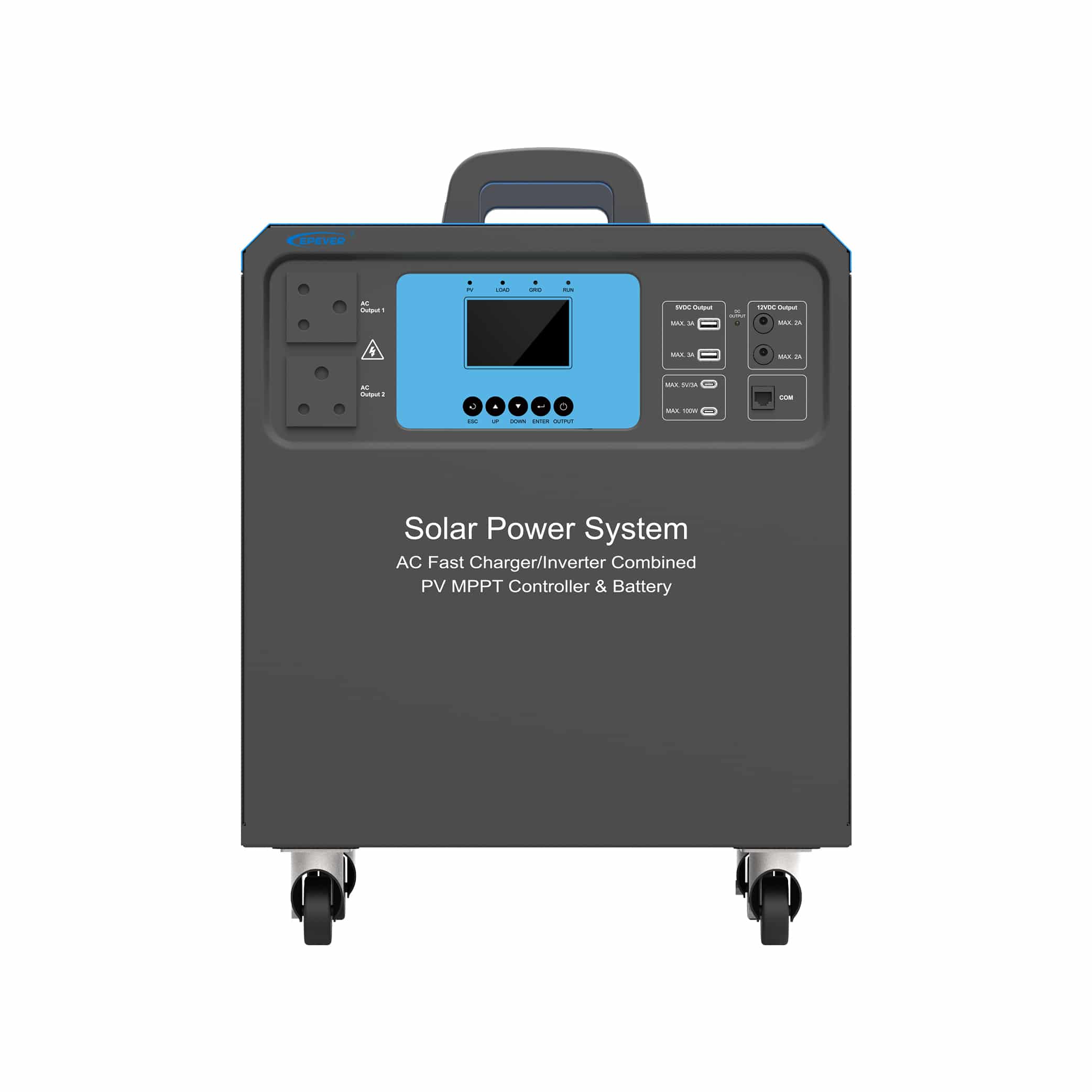

Item	HPS1022-AL0210	HPS1522-AL0210	HPS2522-AL0315
Utility Input
Rated Utility Work Voltage	220VAC	220VAC	220VAC
Utility Work Voltage Range	176VAC ~ 285VAC	176VAC ~ 285VAC	176VAC ~ 285VAC
Utility Input Frequency Range	45Hz ~ 65Hz	45Hz ~ 65Hz	45Hz ~ 65Hz
Max. Utility Work Current (Charging + Bypass)	2.2A for charging + 4.5A for bypass @220VAC	2.8A for charging + 6.8A for bypass @220VAC	3.5A for charging + 11.4A for bypass @220VAC
Utility Transfer Time (Utility Bypass to Inverter Output)	<10ms	<10ms	<10ms
Utility Transfer Time (Inverter Output to Utility Bypass)	0ms	0ms	0ms
AC Input Overload Relay	HAVE	HAVE	HAVE

Download

Datasheet

EPEVER-Datasheet-HPS-AL-Series

DOWNLOAD FILE

Manual

EPEVER-Manual-HPS-AL-Series

DOWNLOAD FILE

Product Highlights

Built-in GEL battery.
PFC technology reduces the demand on the power grid capacity.
Strong anti-impact performance to apply to various types of load.
Fast transfer between inverter and utility output less than 20ms.
Built-in Bluetooth to adjust settings through EPEVER APP.
Comprehensive electronic protections
Unique compartment design provides outstanding protective performance.

Advanced MPPT technology, with max. tracking efficiency higher than 99.5%.
Pure sine wave output.
Support multiple types of generators.
Multiple DC output ports.
4.5-inch LCD display for better status monitoring.
All-in-one, easy connection, easy use.
RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring.

Description

The HPS-AL series is a household energy storage product, with a built-in battery. It supports solar and utility charging options, as well as a DC-to-AC inverter output. Advanced DSP chip with its control algorithm ensures high response speed, reliability, and conversion efficiency. The unique compartment design isolates the heat dissipation channels from the components, providing superior resistance to dust, moisture, and fog. Customers can achieve efficient energy utilization by flexibly using solar energy or utility power via customized settings. Most importantly, this product ensures a stable power supply and is widely used in low or no-power areas.
