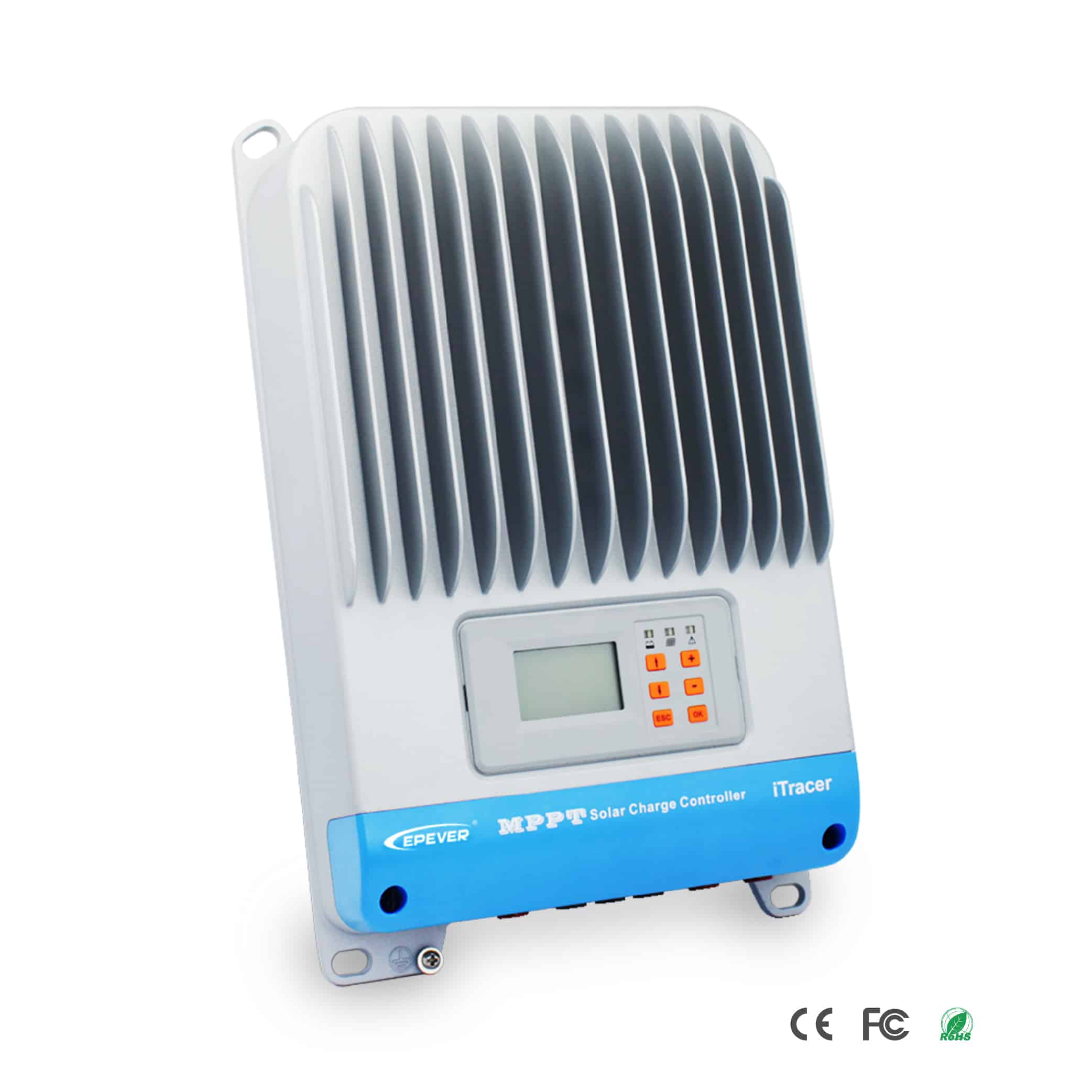

iTracer-ND Series(60A) MPPT Charge Controller

iTracer-ND Series(60A) MPPT Charge Controller

Category

Inverter Specifications

Model

IT6415ND

System Nominal Voltage

12 /24/36/48VDC auto

Battery Type

Lead-acid

Charging Technology

MPPT

Max PV Charging Current

60A

Maximum Discharge Current

60A

Max PV Open Circuit Voltage

150V

Display

LCD and LED

Communication

RS485



Additional information

Specification Value
Model IT6415ND
Nominal system voltage 12/24/36/48VDC
Battery type Sealed (Default)/Gel/Flooded/User
Battery input voltage range 8~68V
Rated charge current 60A
Rated discharge current 60A
Max. conversion efficiency ≤98.0%
Tracking efficiency ≥99.5%
Max. PV open circuit voltage 150V (At minimum operating environment temperature), 138V (At 25℃ environment temperature)
MPP voltage range (Battery voltage+2V)～108V
Rated charge power 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Equalization voltage Sealed: 14.6V, Flooded: 14.8V, User-defined: 9-17V
Boost voltage Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, User-defined: 9-17V
Float Voltage Gel/Sealed/Flooded: 13.8V, User-defined: 9-17V
Low voltage reconnect voltage Gel/Sealed/Flooded: 12.6V, User-defined: 9-17V
Low voltage disconnect voltage Gel/Sealed/Flooded: 11.1V, User-defined: 9-17V
Self-consumption 1.4W～2.6W
Temperature compensation -3mV/℃/2V (Default)
Relative humidity ≤95%, N.C.
Enclosure IP20
Communication port RS485, RS232
Grounding Common Negative
Operating temperature range -25℃～+50℃
Dimensions (LxWxH) mm 440×231×110
Net weight 5.9kg

Download

Datasheet

EPEVER-Datasheet-iTracer-ND



DOWNLOAD FILE

Manual

iTracer-ND-Manual-EN-V4.3



DOWNLOAD FILE

Product Highlights

  • MPPT tracking efficiency above 99.5%

  • Battery type selection: Sealed, Gel, Flooded and User(programmable)

  • 60A DC load output current

  • Data-log function, recording system running information and event

  • Extensive electronic protections

  • With RS-485, RS-232 communication bus interface and Modbus communication protocol



  • Maximum charge conversion efficiency as high as 98%

  • Multiphase sychronous rectification technology (MSRT)

  • Remote monitoring function

  • Die cast aluminum case design

  • IEC62109 certified

3D view

3D View

Description

IT6415ND charge controller with 60A DC output current adopts advanced Maximum Power Point Tracking (MPPT) algorithm, which can harvest the maximum power from the solar array to
charge the battery. It is capable of supporting up to 800W PV power in 12V system, 1600W in 24V system,2400W in 36V system, and 3200W in 48V system.
