Single Products

PORTABLE SOLAR POWER SYSTEM

PORTABLE SOLAR POWER SYSTEM

Category Tags , ,

PORTABLE SOLAR POWER SYSTEM



Additional information

Model LD150S-N1 LD150S-N1R LD150S-N2 LD150S-N2R
System Rated Voltage 12VDC 12VDC 12VDC 12VDC
Max. PV Open Circuit Voltage <30V <30V <30V <30V
PV Array Power 稜� 稜� 稜� 稜�
Lithium Battery Type Li(NiCoMn)O2 Li(NiCoMn)O2 Li(NiCoMn)O2 Li(NiCoMn)O2
Lithium Battery Capacity 16/38AH 10/16AH 16/38AH 10/16AH
Charge Way PWM PWM PWM PWM
Max. Charge Current 10A 10A 10A 10A
DC Output 8-way DC12V3A (Total output power 120W) 8-way 12VDC/3A (Total output power 120W) 8-way DC12V3A (Total output power 120W) 8-way 12VDC/3A (Total output power 120W)
USB Output Port DC5V/2.1A 2-way 5VDC/2.1A DC5V/2.1A 2-way 5VDC/2.1A
Self-Consumption 16mA 16mA 16mA 16mA
Radio —— Silver —— Silver
Weight About 2.3kg (Inside the 16AH lithium battery) About 5.8kg (Inside the 38AH lithium battery) About 2.0kg (Inside the 10AH lithium battery) About 2.2kg (Inside the 16AH lithium battery)
Model LD150S-N3 LD150S-N3S LD150S-N4 LD150S-N4R
System Rated Voltage 12VDC 12VDC 12VDC 12VDC
Max. PV Open Circuit Voltage <30V <30V <30V <30V
PV Array Power 稜� 󖽌 稜� 󖽌
Lithium Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4
Lithium Battery Capacity 18AH 12AH 18AH 12AH
Charge Way PWM MPPT PWM MPPT
Max. Charge Current 10A 5A 10A 5A
DC Output 4-way 12VDC/3A (Total output power 120W) 4-way 12VDC/3A (Total output current is 3A) 4-way 12VDC/3A (Total output power 120W) 4-way 12VDC/3A (Total output current is 3A)
USB Output Port 2-way 5VDC/2.1A 2-way 5VDC/2.1A 2-way 5VDC/2.1A 2-way 5VDC/2.1A
Emergency Lamp LED lamp DC12V/1W —— —— ——
Self-Consumption 24.8mA 10mA 24.8mA 10mA
Utility Output Voltage Range —— 176VAC〜264VAC —— ——
Utility Charge Current —— 3A±0.3A —— ——
Weight About 3.4kg About 3.5kg About 2.1kg About 2.2kg
Radio —— —— —— Silver

Download

EPEVER-Datasheet-EZPOWER

EPEVER-Datasheet-EZPOWER



DOWNLOAD FILE

EZPOWER-SMS-EL-V1.0

EZPOWER-SMS-EL-V1.0



DOWNLOAD FILE

Product Highlights

  • Support different PV panel power 20W-150W and the max. PV open circuit is less than 30V

  • All models are DC output, especially used for LED light, fans, phone charging, and some other small DC appliance

  • LED indicators display the system running status

  • Multiple protection features to ensure system security and reliability

  • Packed with a solar FM radio with MP3 playback to stay up-to-date on important news or listen to music
  • Cigarette lighter for bigger current output usage



  • Smart dimension, but long life span. It supports LiFePO4(10～20Ah available) and Li(NiCoMn)O2(10～38Ah available)battery type

  • USB 5V 2.1A output, charging mobile phones and other small USB-powered devices

  • Low power consumption and industrial design to reduce loss

  • Utility charging function, more convenient for power storage

  • Embedded LED light 1W for emergency use

Description

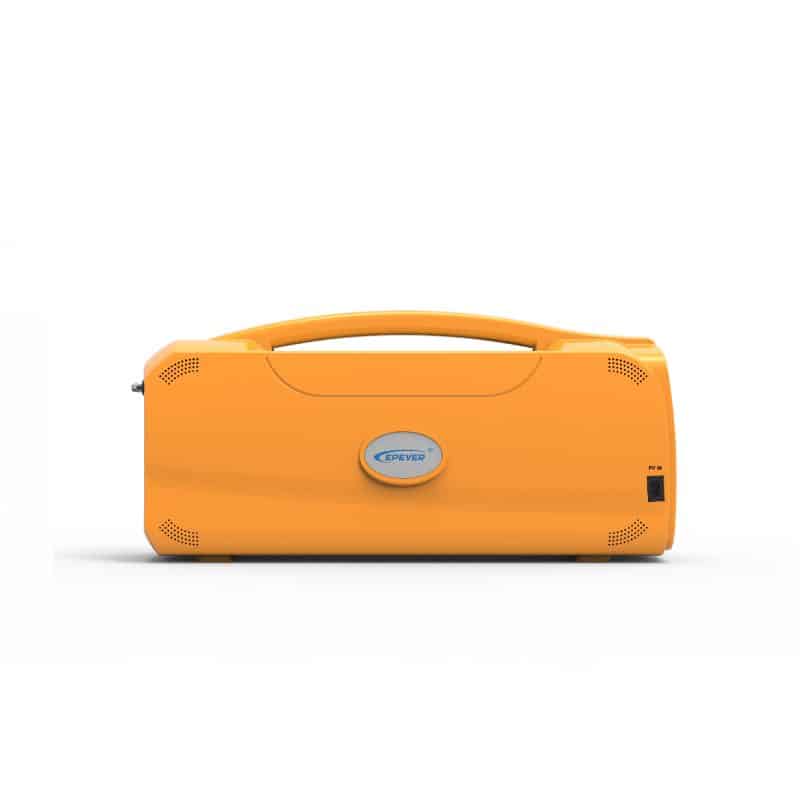

EZ Power DC portable system is a functional off-grid power supply for home and business use, which includes LED light, USB port, cigarette lighter, FM radio in rich interface connection to fit the customer demands. It’s also an efficient energy solution nowadays.
