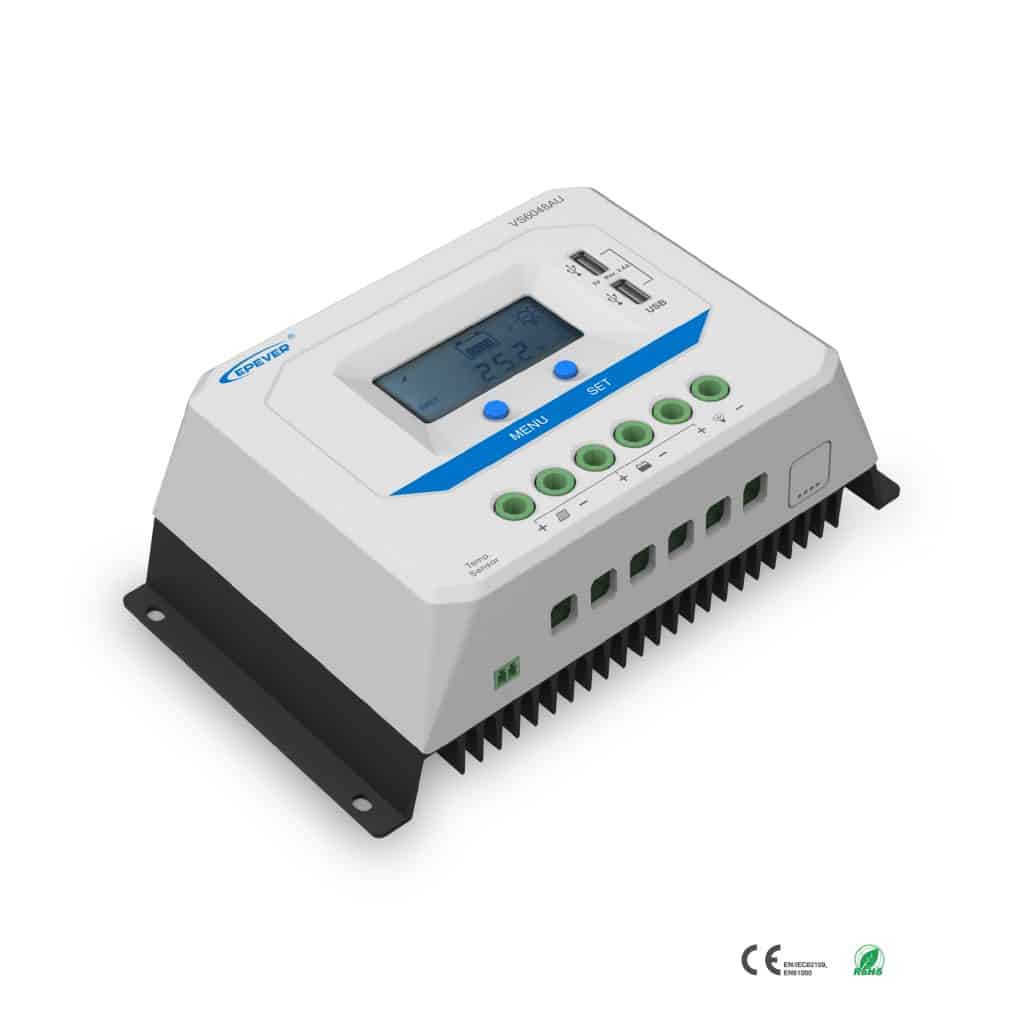

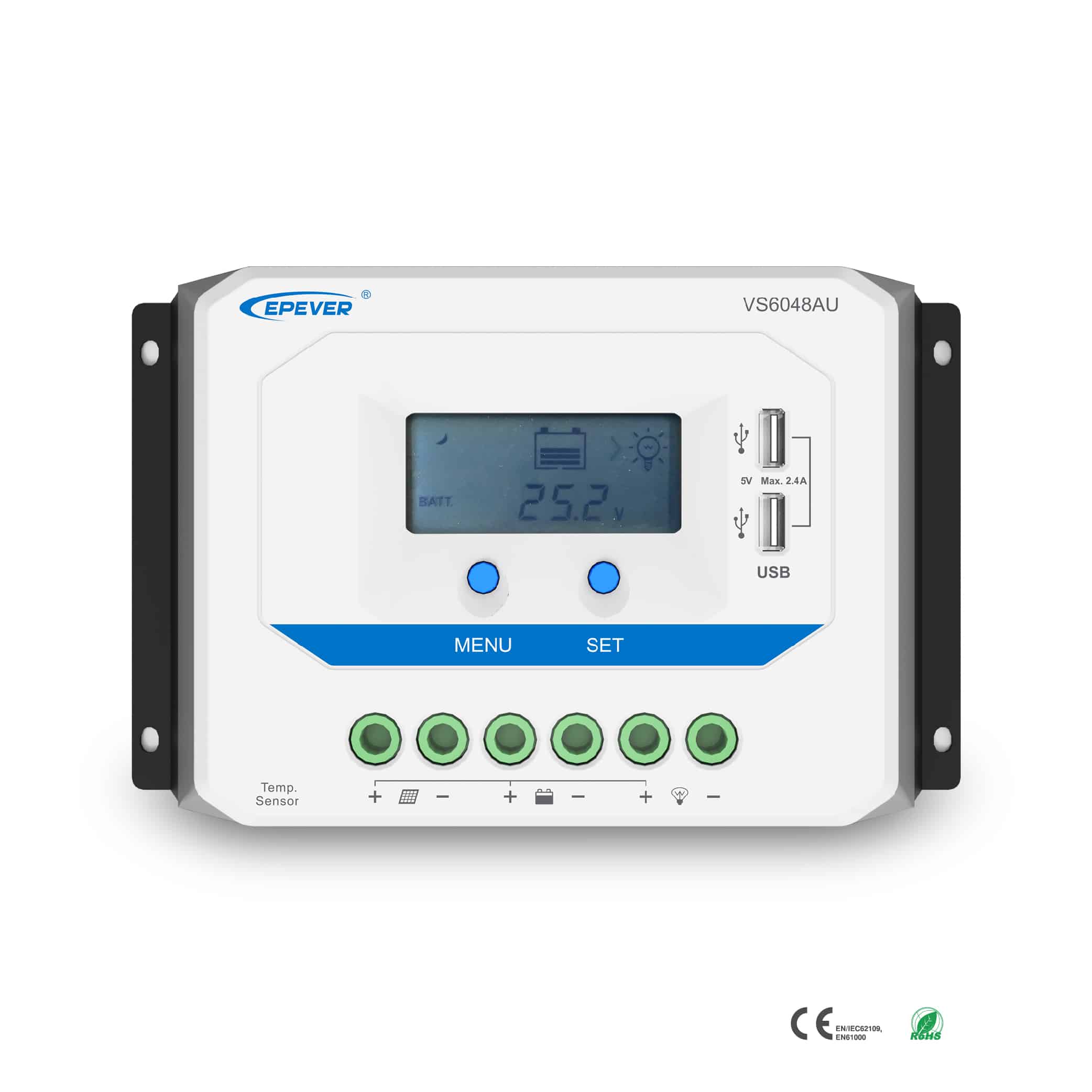

VS-AU series is a PWM charge controller with LCD display and two USB ports. When the gap between solar panel working voltage and battery voltage is not big, choosing this PWM series is an equally reliable but more cost-effective solution. It is widely applied to rural Electrification and home power systems etc.
| Model | VS1024AU | VS2024AU | VS3024AU | VS3048AU | VS4524AU | VS4548AU | VS6024AU | VS6048AU |
| Nominal system voltage | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto | 12/24/36/48VDC Auto | 12/24VDC Auto | 12/24/36/48VDC Auto | 12/24VDC Auto | 12/24/36/48VDC Auto |
| Battery type | Sealed(Default)/Gel/Flooded | |||||||
| Battery input voltage range | 9V～32V | 9V～32V | 9V～32V | 9V～64V | 9V～32V | 9V～64V | 9V～32V | 9V～64V |
| Rated charge current | 10A | 20A | 30A | 30A | 45A | 45A | 60A | 60A |
| Rated discharge current | 10A | 20A | 30A | 30A | 45A | 45A | 60A | 60A |
| Max. PV open circuit voltage | 50V | 50V | 50V | 96V | 50V | 96V | 50V | 96V |
| Equalization voltage | Sealed:14.6V,Flooded:14.8V | |||||||
| Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V | |||||||
| Float voltage | Gel/Sealed/Flooded:13.8V | |||||||
| Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V | |||||||
| Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V | |||||||
| Self-consumption | ≤9.2mA/12V;≤11.7mA/24V;≤14.5mA/36V;≤17mA/48V | |||||||
| USB output | 5VDC/2.4A(Total) | |||||||
| Temperature compensation | -3mV/℃/2V（25℃） | |||||||
| Relative humidity | ≤95%, N.C. | |||||||
| Enclosure | IP30 | |||||||
| Grounding | Common Positive | |||||||
| Operating temperature range | -25℃～+55℃ | |||||||
| Dimensions(LxWxH)(mm) | 142×85×41.5 | 160×94.9×49.3 | 181×100.9×59.8 | 181×100.9×59.8 | 194×118.4×63.8 | 194×118.4×63.8 | 214x128.7x72.2 | 214x128.7x72.2 |
| Net Weight | 0.22kg | 0.35kg | 0.55kg | 0.58kg | 0.76kg | 0.88kg | 1.02kg | 1.04kg |
